Engine

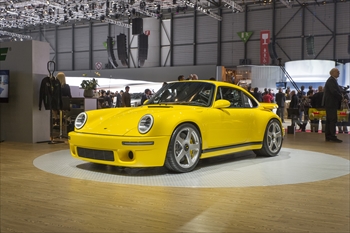

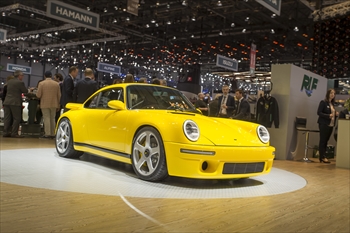

RUF CTR with 3.6 liter twin turbo water cooled engine
Maximum Output 522kW (710 hp) @ 6,750 RPM,
Maximum Torque 880 Nm @ 2.750-4.500 RPM
Dry sump lubrication with separate oil tank

Transmission

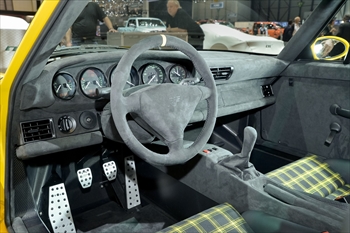

6-speed manual gearbox
Rear wheel drive

Suspension

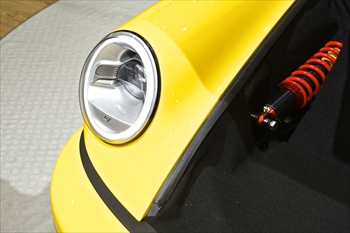

Double-wishbone suspension arms with horizontal dampers in pushrod configuration on front and rear axle.

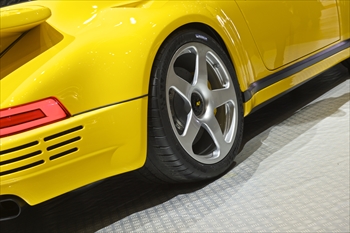

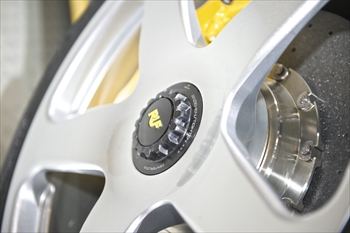

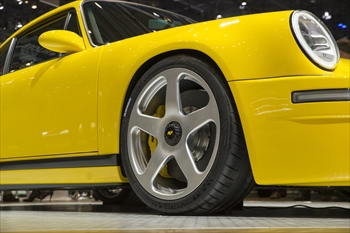

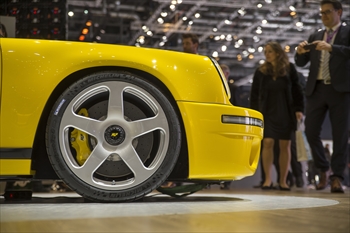

5-spoke centerlock forged alloy wheels

BODY

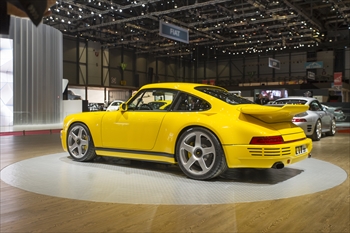

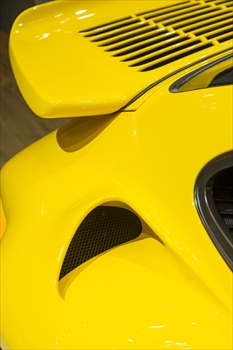

Inlets for intake air in the rear side windows

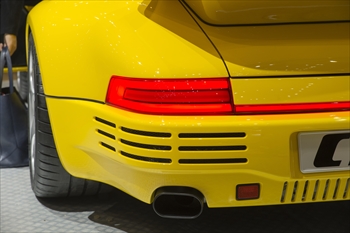

Air intakes for intercoolers in the rear fenders
CFK monocoque for maximum stiffness by minimum weight
Front and rear frames in spaceframe design
Integrated roll-over cage (IRC)

Dimensions and weight

Length : 4.207,0 mm
Width: 1.818,5 mm
Height: 1.265,0 mm
Wheelbase: 2.342,0 mm

Kerb weight

Kerb weight (DIN): 1.200 kg
Kerb weight (EG): 1.275 kg
